de Robotics Bernd 2025-09-23 22:50:08 No. 12231
assets_task_01k5t26re7e1qs6171qr13raq5_1758590221_img_1
.webp

Open file 510.82 KB, 1024x1536
Pfostenbild
4aa67428-e928-4f75-8d11-6bc7fa799934
.png

Open file 3.20 MB, 1536x1024
Pfostenbild
PXL_20250915_134901448
.webm

Open file 7.63 MB, 1920x1080
Pfostenbild
test
.webm

Open file 10.38 MB, 1920x1080
Pfostenbild
It doesn't seem like anyone on /b/ is interested so I am trying here. I have built two SO-101 arms recently and I am trying them out right now. So far I have successfully made them move and teleoperate and I have recorded a couple sets of data for machine learning but I haven't had any luck getting the robot arm to work autonomously so far. My guess is that I need more cameras and better lighting to get a nicer and more trainable set of data. As a little side quest I have reused a Lillygo T-Display as a little controller board for the dataset recording. Pressing button 1 starts and stops recordings and pressing the second button discards the last recording. This means I do not have to switch from controlling the robot to starting and stopping the recording on my computer which makes things a bit nicer (if you consider that you have to do the same training moves for like 30-50 times in a row or more) Is Bernd interested in robotics? Do you have experience? Show off your robots
de Bernd 2025-09-23 23:11:30 No. 12233
I think it's cool OP is capable of something like this, but personally I have never experimented with robots and have no interest in doing so.
de Bernd 2025-09-23 23:12:33 No. 12234
>>12233 Well, I am only following instructions up to this point and all my training data has not yet resulted in a success but I'll keep trying.
se Bernd 2025-09-24 07:42:43 No. 12256 SÄGE!
>>12231 I really like that rug. Can you provide some more pictures of it? Especially the border looks very interesting. If you know, or there is an etiquette underneath, I would love to know more about it. Sorry for derailing your thread, therefore Säge
ch Bernd 2025-09-24 08:09:14 No. 12257
ClipboardImage-1758701329
.png

Open file 136.50 KB, 720x480
Pfostenbild

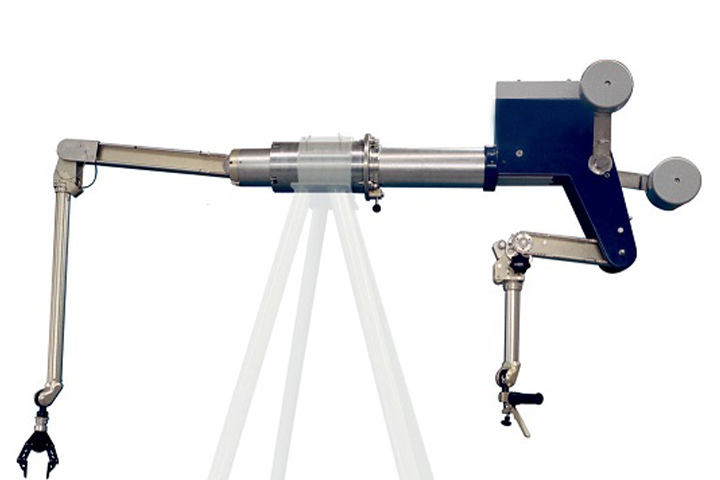

I was interested, I just didn't have a lot of things to say about it. Thanks for keeping us updated though. Maybe one thing: have you considered building a manipulator like they use for radioactive waste? The controls look a little bit like a bike brake.
by Bernd 2025-09-24 09:22:12 No. 12274
>>12233 this keep it up, OP >haven't had any luck getting the robot arm to work autonomously so far but that's the main issue with all the robotics I've seen so far: these are human operated machines outside of some pretty basic actions
de Bernd 2025-09-24 10:19:25 No. 12284
rug
.jpg

Open file 3.74 MB, 1897x3598
Pfostenbild
>>12256 >Sorry for derailing your thread, therefore Säge No worries. Bought the rug off eBay a couple years ago and I don't think there's a label anywhere but I can't access all four corners, sorry.
de Bernd 2025-09-24 10:29:28 No. 12285
4n49m9nTHtITz5L0vQaJMi85iAW[1]
.jpg

Open file 678.87 KB, 3690x2076
Pfostenbild
>>12284 Does it really tie the room together?
de Bernd 2025-09-24 10:31:21 No. 12286
foto_no_exif
.jpg

Open file 1.88 MB, 3835x2765
Pfostenbild
244672-17824169
.jpg

Open file 22.26 KB, 500x500
Pfostenbild

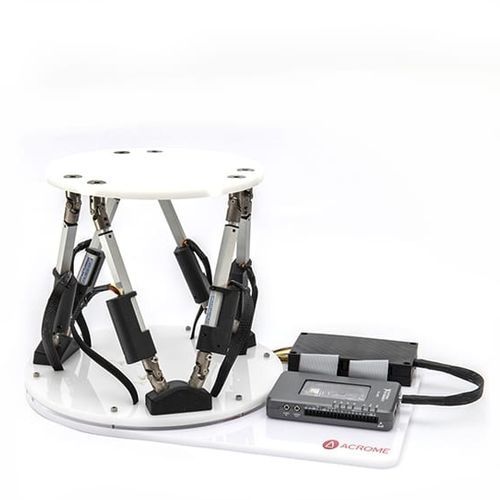

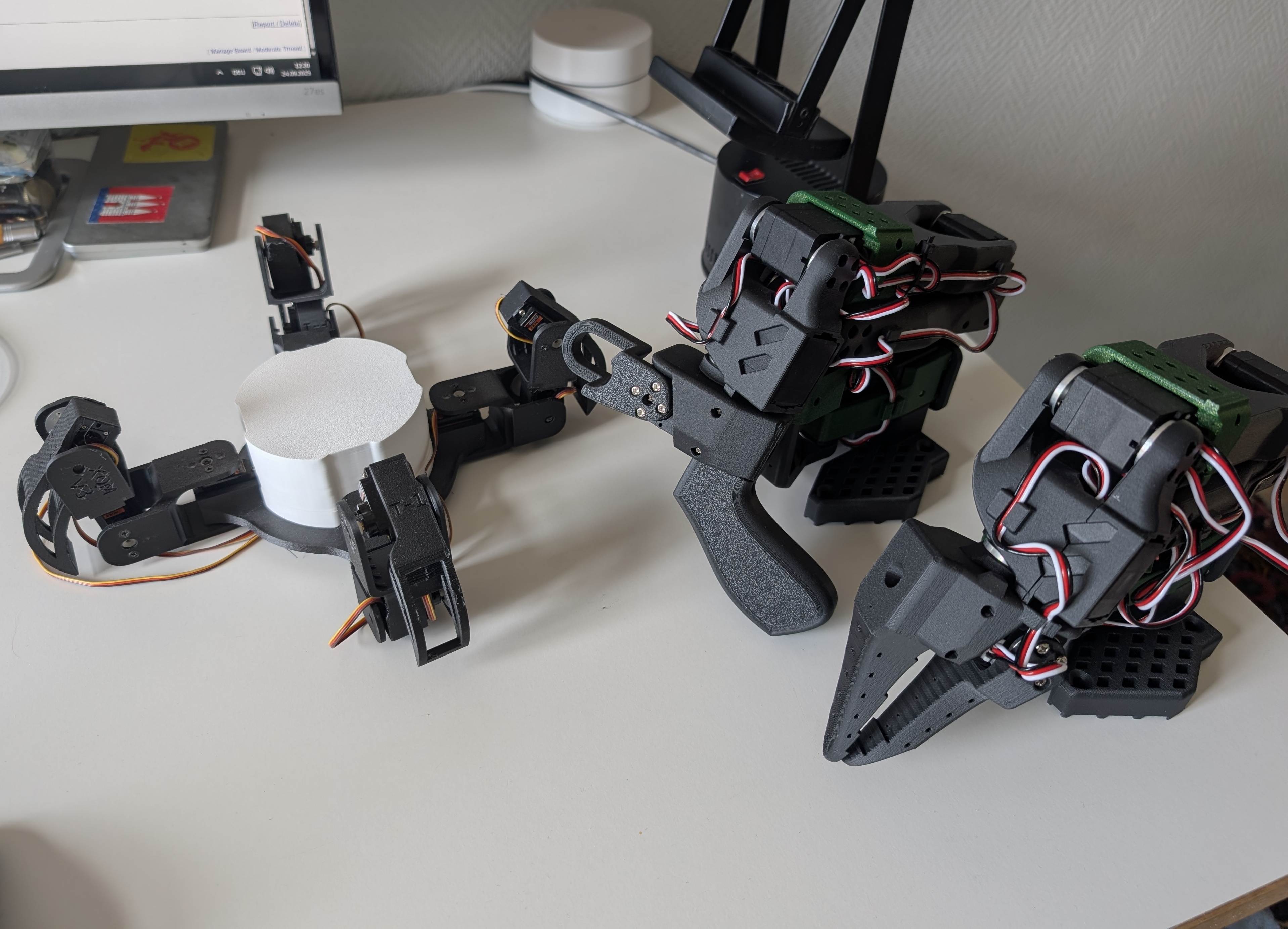

>>12257 That looks cool but I don't need any more robotics projects at the moment. If anything I'd like a hexapod/stewart platform to play around with but that's gonna have to wait
hr Bernd 2025-09-25 07:41:47 No. 12439
That's really cool! Where do you get the equipment/parts for building something like that?
de Bernd 2025-09-25 17:07:00 No. 12524
>>12439 All the files and a list of everything you need is publically available on Github if you look for SO-101. Servo motors and the controller I bought directly off Aliexpress and the structural parts are 3d printed
hr Bernd 2025-09-25 17:10:19 No. 12525
>>12524 Thank you. Gonna give it a try myself.
de Bernd 2025-09-25 17:13:33 No. 12526
>>12525 https://github.com/TheRobotStudio/SO-ARM100?tab=readme-ov-file Go for it. It's big fun. The github documentation has a bill of materials and suppliers and prices ready to go and it is good fun.
hr Bernd 2025-09-25 17:21:22 No. 12529
>>12526 Thanks once again <3
